DB0FZ Former Experimental Repeater Station

DB0FZ is the former callsign for my permament station I had running from my home location in Germany. It was formally assigned from the German authorities and allowed me to run the following:

  • A 5Ghz HAMNET Link to DB0HOB (Hochries Mountain)
  • APRS Gateway (144.800 Mhz)
  • NPR (New Packet Radio) Station (70cm)
  • POCSAG Transmitter (439.9875 Mhz)

    Furthermore I had the following low-power services running
  • Lora-APRS (70cm)
  • MeshCom (70cm)

The German authorities approved my request to run a 70cm Multi-Mode repeater also under the callsign DB0FZ. This was my new MMDVM repeater, to run especially M17.

Repeater Callsign:DB0FZ
Country:Germany
State:Bavaria
Region:Miesbach
Address:Lechlweg 17, 83607 Holzkirchen
Locator:JN57UV
Coordinates:47°52’53″N 11°42’02″E (WGS 84)
Elevation over sea:681,4
Elevation from ground:15m
Frequency Transmitter TX:439,4875 MHz (-7,6 Mhz)
Frequency Receiver RX:431,8875 MHz

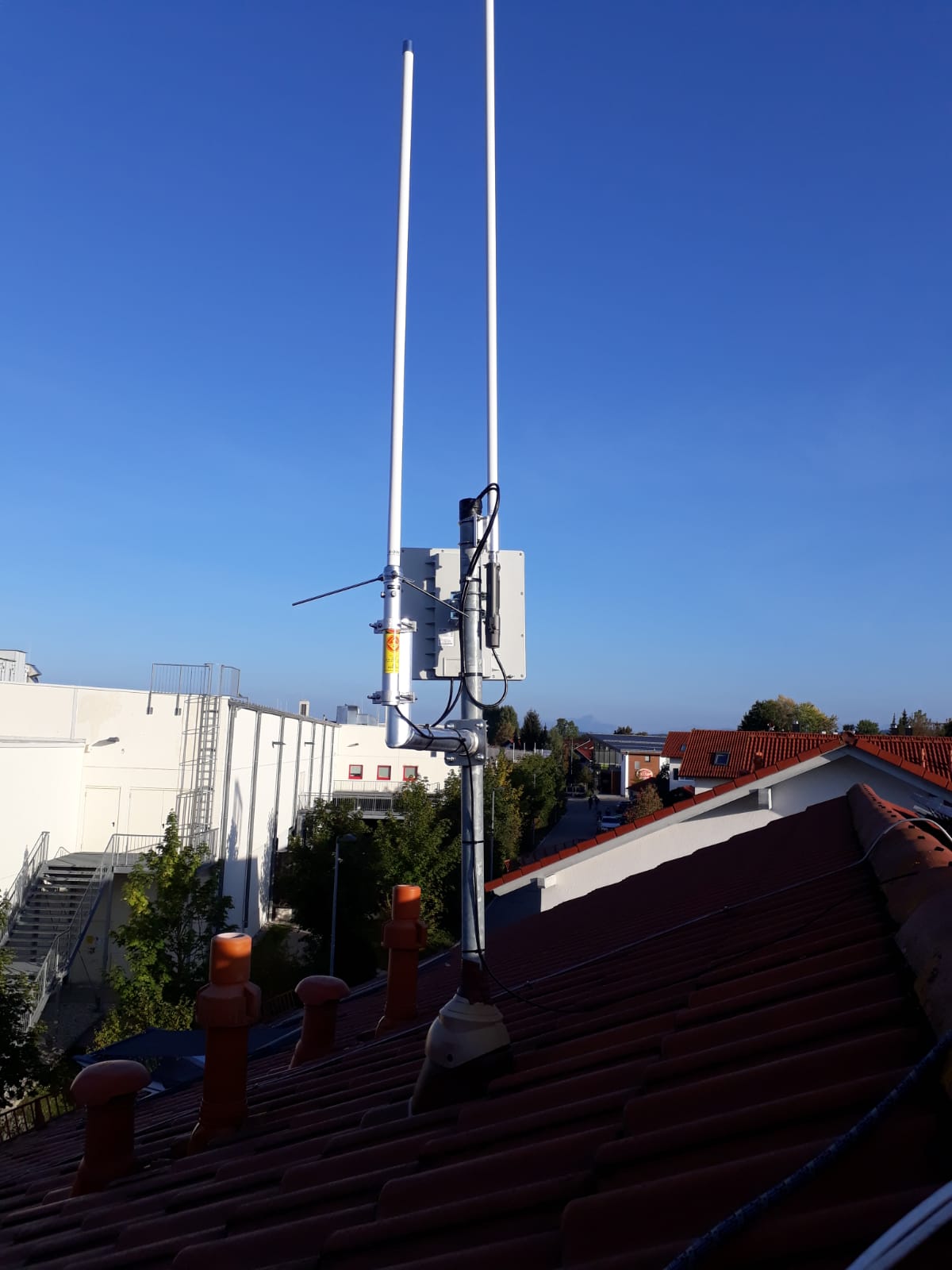

Antenne:Diamond X5000
Output Power:15 Watt EIRP
Power Consumption:TX tbd Watt, RX tbd Watt
Modulation:FM, D-Star, C4FM, M17
Sendeart:F3E
Bandwidth:12,5 KHz
Comments:–
License holder:DL6FZ
Equipment owner:DL6FZ
Contact:dl6fz at dl6fz.de
Region Coverage:the area and rural district of Miesbach
